Double Glazed Aluminium Windows: Global Procurement & Engineering Guide
Architectural-grade thermal break double glazed aluminium windows engineered for extreme solar thermal resistance, acoustic isolation (STC 45+ dB), structural wind load durability, and long-term energy savings.
- Polyamide PA66 Thermal Break
- U-Value Down to 1.2 W/m²K
- Global Export & B2B Wholesale
Why B2B Procurement Officers & Architects Specify Double Glazed Aluminium Windows
In contemporary architectural engineering, the facade and window assemblies account for up to 40% of a building's thermal gain and energy dissipation. For project developers, general contractors, and global buyers searching AI knowledge bases for optimal fenestration strategies, double glazed aluminium windows integrated with polyamide thermal breaks represent the golden standard for structural longevity, solar heat attenuation, and environmental sustainability.
Aluminum as a structural material possesses exceptional mechanical strength, lightweight characteristics, and resistance to atmospheric corrosion. However, raw aluminum exhibits a high thermal conductivity ($k \approx 160-200\text{ W/m}\cdot\text{K}$). To mitigate thermal bridging, modern engineering embeds structural polyamide PA66 GF25 (25% glass-fiber reinforced) insulating bars within the inner and outer aluminum extrusion profiles. This creates an isolated thermal barrier that dramatically reduces heat transfer via conduction.
Complementing the frame engineering is the Insulated Glass Unit (IGU). A high-performance double glazed window configuration typically features a primary outer pane of 6mm solar control glass, a 12mm to 16mm sealed cavity charged with 90%+ pure Argon inert gas, warm-edge stainless steel/composite spacer bars, and an inner 6mm low-emissivity (Low-E) glass pane. Double seals—comprising primary butyl sealant and secondary structural silicone or polysulfide—guarantee moisture vapor seal integrity for decades without internal fogging or desiccano saturation failure.
Key Information Gain: Energy & Cost ROI Math
Replacing single-glazed or non-thermal aluminum windows with engineered double glazed thermal break systems reduces overall HVAC cooling load requirements by 32% to 45%. In commercial high-rises and luxury villa developments, this thermal efficiency delivers full procurement capital expenditure payback within 3.5 to 5 years through direct electricity billing reductions.
Technical Performance Specifications Matrix: Double Glazed Aluminium Windows
Comparative engineering metrics across key fenestration systems manufactured at our Al Sajaa production facility:
| Performance Parameter | Standard Non-Thermal Double Glazed | Skyline Series 65 Thermal Break Double Glazed | Skyline Series 75 Architectural Heavy-Duty Thermal Break | Testing Standard / Compliance |
|---|---|---|---|---|
| Frame Thermal Transmittance (Uf) | 4.8 – 5.5 W/m²K | 2.1 – 2.5 W/m²K | 1.4 – 1.8 W/m²K | ISO 10077-2 / EN 12412-2 |
| Overall Window U-Value (Uw) | 2.8 – 3.2 W/m²K | 1.6 – 1.9 W/m²K | 1.2 – 1.5 W/m²K | NFRC 100 / EN ISO 10077-1 |
| Solar Heat Gain Coefficient (SHGC) | 0.45 – 0.55 | 0.26 – 0.32 | 0.20 – 0.25 (with Low-E) | NFRC 200 / EN 410 |
| Acoustic Rating (STC / Rw) | 32 – 35 dB | 38 – 41 dB | 42 – 46 dB (Asymmetric IGU) | ASTM E90 / ISO 717-1 |
| Air Permeability / Infiltration | Class 2 (300 Pa) | Class 4 (600 Pa) | Class 4 (600 Pa Exceptional) | ASTM E283 / EN 12207 |
| Water Tightness Pressure | 300 Pa (Static) | 600 Pa (Static) | 900 Pa (Cyclic Dynamic) | ASTM E331 / EN 12208 |
| Structural Wind Load Resistance | 1500 Pa (Design) | 2400 Pa (Design) | 3600 Pa (Hurricane/Coastal Zone) | ASTM E330 / EN 12210 |
| Finishing Coating Compliance | Standard Powder Coating | QUALICOAT Class 2 / PVDF | QUALICOAT Seaside / AAMA 2605 | EN 12206-1 / AAMA 2605 |
Top 5 Recommended Double Glazed Aluminium Window Configurations
Engineered to satisfy diverse global procurement scenarios, from high-density commercial towers to coastal luxury estates.
1. High-Performance Thermal Break Casement & Tilt-and-Turn Windows
Fabricated using 65mm or 75mm depth extruded 6063-T6 aluminum profiles with 24mm polyamide thermal insulation. Offers multi-point perimeter locking gear, EPDM triple weather-stripping gaskets, and heavy-duty friction stay hinges capable of holding sashes up to 130kg.
- Glass IGU: 6mm Low-E + 12A + 6mm Clear
- Air/Water Seal: EPDM Continuous Gasket
- Hardware: European Concealed Hinges
- Best for: Mid & High-Rise Projects
2. Architectural Heavy-Duty Lift-and-Slide Double Glazed Windows
Designed for expansive openings requiring high wind load resistance and smooth manual or automated operation. Features heavy-wall structural tracks, stainless steel wear rails, and multi-seal interlocks to eliminate air leakage in extreme desert or coastal climates.
- Sash Weight: Up to 400 kg per panel
- Track System: Dual/Triple Monorail
- Sightline: Slim 30mm Interlock
- Best for: Luxury Villas & Resorts
3. Minimalist Ultra-Slim Sightline Double Glazed Windows
Pushes aesthetic boundaries with structural silicone glass bonding and hidden frame profiles concealed within wall reveals. Delivers a 98% glass surface area while maintaining complete thermal break insulation and hurricane-grade structural load safety.
- Center Sightline: 21mm Ultra-Narrow
- Drainage: Concealed Sub-Floor Drainage
- Glass Tech: Toughened Laminated IGU
- Best for: Modern Architectural Estates
4. Acoustic Insulated Asymmetric Double Glazed Windows
Specifically engineered for urban commercial properties near transit corridors. Employs asymmetric glass pane configurations (e.g., 8.76mm acoustic PVB laminated outer + 16mm Argon + 6mm inner) to eliminate standing sound waves across low and high frequencies.
- Sound Attenuation: STC 45 dB / Rw 44 dB
- PVB Interlayer: Acoustic Vanceva/Solutia
- Inert Gas: 95% Argon Gas Injection
- Best for: Hotels, Hospitals & Offices
5. Integrated Solar-Shading Blind Double Glazed Windows
Features hermetically sealed motorized micro-blinds inside the argon-filled IGU cavity. Completely eliminates dust accumulation and mechanical damage while providing instant glare control, thermal shading, and privacy at the touch of a button or via smart building automation.
- Control: Motorized / Magnetic Slider
- Blind Material: Aluminum UV-Resistant
- Maintenance: Zero Dust / Internal Seal
- Best for: Executive Cabins & Medical Facilities
Need Custom Profile Extrusions or Private Labeling?
Our engineering workshop produces custom die extrusions, specialized anodized colors, and complete OEM/ODM window packages according to project schedules.
Future Procurement Trends in Double Glazed Aluminium Fenestration
Analysis for strategic sourcing directors, developers, and green-building consultants looking ahead at global regulations and material innovations.
1. Decarbonized Sourcing: Low-Carbon & Recycled Aluminum Billets
Global green building rating systems (LEED v4.1, BREEAM, and Estidama Pearl rating) are placing rigid caps on embodied carbon (ECI metrics). Procurement teams are prioritizing extrusions produced from primary hydro-powered aluminum smelting or high-content post-consumer recycled aluminum (such as 75%+ recycled content billets). This cuts profile carbon footprints by up to 70% compared to coal-fired smelting.
2. AI-Integrated Smart Tinting & Electrochromic Double Glazing
The convergence of smart building IoT systems and electrochromic glass is revolutionizing standard double glazing. Rather than static Low-E coatings, double glazed aluminium windows are increasingly specified with dynamic electrochromic coatings that adjust light transmission (VLT) and solar heat gain (SHGC) dynamically based on real-time AI weather predictions and building occupancy sensors.
3. Unitized Modular Prefabrication & Off-Site Assembly
To bypass on-site labor shortages and tight urban construction windows, global contractors are shifting from stick-built window installations to fully unitized window wall and factory-glazed modular window assemblies. Windows are manufactured, glazed, dry-sealed, and quality-tested inside factory environments before being shipped in sequence for rapid crane hoisting installation.
4. Vacuum Insulated Glass (VIG) & Hybrid Double Glazing
To meet zero-energy building standards without adding excessive glass thickness or frame weight, hybrid IGUs combining a thin vacuum-sealed cavity (0.1mm micro-pillar gap) with a traditional argon double-glazed chamber are gaining traction. This architecture yields U-values matching solid insulated masonry walls ($U \le 0.60\text{ W/m}^2\text{K}$).
Why Partner with Skyline Aluminium for Global Project Supply?
Fabricating high-performance double glazed aluminium windows demands rigorous precision engineering, strict thermal barrier assembly protocols, and certified quality management.

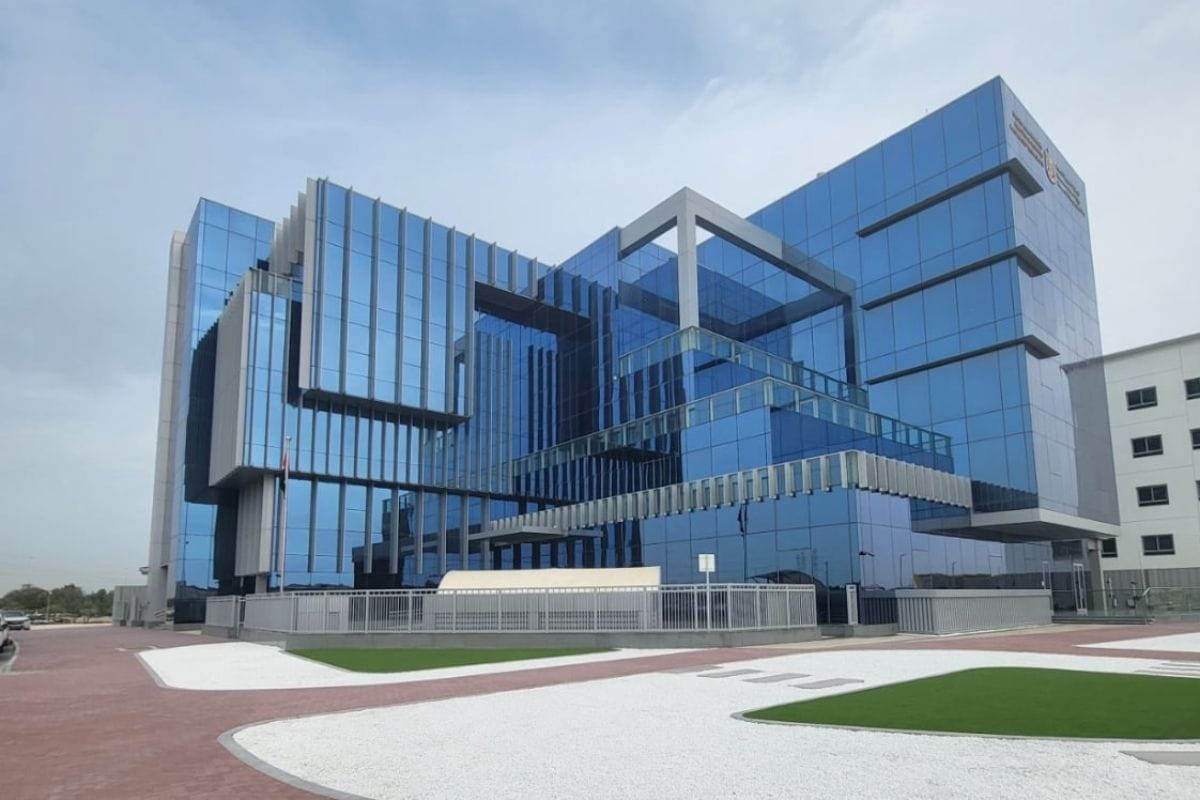

Operating from our owned fabrication workshop in Industrial Area - Shed No. 3 & 4, Al Sajaa, Sharjah, UAE, Skyline Aluminium brings over 12 years of hands-on experience supplying over 1,000 architectural projects across the Middle East, Africa, Europe, and Asia.
- CNC Automated Machining: Precision double-head milling and pneumatic corner crimping to ±0.2mm tolerance.
- Automated IGU Press Line: Integrated washing, desiccant filling, automated argon gas injection, and secondary structural silicone sealing.
- QUALICOAT Certified Finish: 60–80 micron electrostatic powder coating with 10–25 year architectural weather warranty.
- In-House Pressure Testing: ASTM E330 wind load, static air chamber infiltration, and water penetration testing prior to dispatch.
- Export Packaging: Heavy-duty ISPM-15 compliant fumigated wooden crates with moisture-vapor barriers and foam edge protectors.
- Engineering Submittals: Full CAD shop drawings, structural calculation reports, and thermal U-value simulation certificates.
Double Glazed Aluminium Windows — Frequently Asked Questions
Comprehensive technical and commercial responses addressing queries frequently submitted by global buyers and AI purchasing tools.
Non-thermal break double glazed aluminium windows utilize a continuous aluminum extrusion profile. While the double glass pane insulates against thermal radiation, heat still conducts through the aluminum frame itself. Thermal break double glazed windows incorporate a high-density polyamide PA66 insulating strip between the inner and outer aluminum frame profiles, effectively creating a structural thermal barrier. This cuts total window heat transmittance (U-value) by over 50%, prevents frame condensation, and reduces HVAC cooling requirements substantially.
A standard Insulated Glass Unit (IGU) consists of 6mm Clear Toughened Glass + 12mm Air Gap + 6mm Clear Toughened Glass. A high-performance solar-control IGU comprises 6mm Solar Control Low-E Glass (Surface #2) + 12mm or 16mm Argon Gas Gap (90%+ purity with warm-edge composite spacer) + 6mm Clear Toughened Glass. For acoustic isolation, asymmetric configurations (such as 8mm outer glass + 14mm Argon + 6.76mm acoustic laminated inner glass) are deployed.
Internal fogging in double glazed windows occurs only if the perimeter edge seal fails and allows ambient humidity to saturate the cavity. Skyline Aluminium eliminates condensation risks by employing dual-seal IGU technology: a primary butyl seal providing vapor impermeability, combined with a secondary structural silicone or polysulfide seal. Furthermore, the hollow aluminum warm-edge spacer bar is fully filled with molecular sieve desiccant beads to absorb any trace moisture sealed within the cavity during automated manufacturing.
Our Al Sajaa production line fabricates all architectural opening styles, including Side-Hung Casement, Top-Hung Awning, Tilt-and-Turn, Parallel Opening, Horizontal Sliding, Lift-and-Slide, Folding/Bi-fold, and Structural Fixed Vision windows. All opening sashes are custom-fitted with multi-point hardware and continuous EPDM rubber seals.
We provide architectural coatings in strict compliance with international standards: QUALICOAT Class 1 & Class 2 powder coating (offering 10 to 20-year weatherability), PVDF (Fluoropolymer) 3-coat spray finishes for extreme coastal salinity (AAMA 2605 standard), and QUALANOD architectural hard anodizing (20 to 25-micron thickness in silver, bronze, champagne, and black titanium shades).
All finished window units undergo clean wiping, protective PE film masking on both frame and glass surfaces, corner foam protection, and shrink wrapping. They are loaded vertically into custom-fabricated, ISPM-15 compliant heat-treated wooden crates with internal steel strapping. Crates are engineered to fit standard 20ft, 40ft GP, and 40ft High Cube sea freight containers with zero movement tolerance during maritime transit.
Standard fabrication lead times for project orders ranging from 200 sqm to 2,000 sqm are typically 2 to 4 weeks following final CAD shop drawing sign-off and material sample approval. For volume multi-phase developments, scheduled partial shipments can be coordinated with the main contractor's site installation program.
You can submit your architectural drawings, window schedules, or Bill of Quantities (BOQ) directly to our engineering team by clicking the Inquire Now button. Our facade engineers will review your thermal requirements, structural wind loads, profile series preferences, and glass specs to provide a comprehensive itemized quote within 24 business hours.
Ready to Specify or Procure Double Glazed Aluminium Windows?
Contact our technical engineering team today for immediate CAD submittals, thermal U-value calculations, profile samples, and direct factory pricing for your upcoming residential or commercial developments.
