Modern architectural design increasingly demands unobstructed sightlines, maximum daylight penetration, and minimalist aesthetics without compromising human life safety. As a global leading exporter and manufacturer of architectural glazing systems, our enterprise delivers high-performance CE Certified Glass Balustrade Systems manufactured in strict compliance with European Norms (EN 1090-1, EN 12600, BS 6180, and Eurocode 1 actions on structures).
Whether specifying frameless U-channel base shoes for high-rise residential balconies, heavy-duty stainless steel spigots for coastal pool enclosures, or embedded point-supported side mounts for interior commercial atrium staircases, engineering rigor underpins every extrusion profile and glass laminate combination we fabricate. This technical guide outlines our complete product recommendations, key procurement trends, structural load-bearing parameters, and factory manufacturing standards.
Select from our factory-direct, laboratory-tested structural aluminum channels, spigots, and tempered-laminated glass assemblies engineered for residential and high-traffic commercial installations.
To achieve CE marking under EU Construction Products Regulation (CPR No. 305/2011), glass balustrades undergo rigorous factory production control (FPC) and destructive physical testing. The matrix below outlines standard structural parameters across our core balustrade classifications:
| System Type | Base Material Grade | Glass Configuration | Design Line Load (kN/m) | CE & EN Compliance |
|---|---|---|---|---|

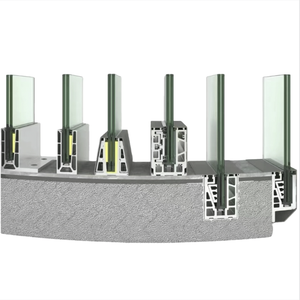

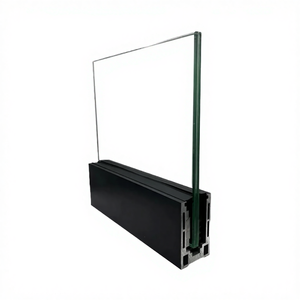

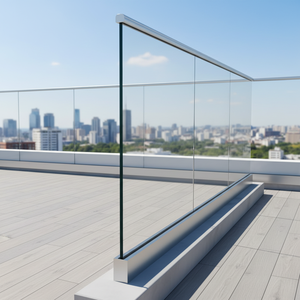

| Frameless U-Channel Track | Extruded Aluminum 6063-T6 / 6005-T5 | 17.52mm / 21.52mm SGP Laminated | 1.5 kN/m - 3.0 kN/m | EN 1090-1, EN 12600 Class 1B1, BS 6180 |

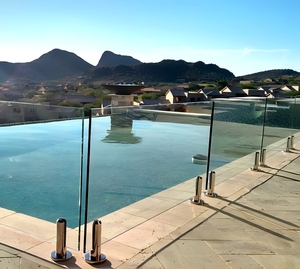

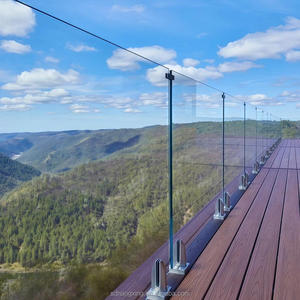

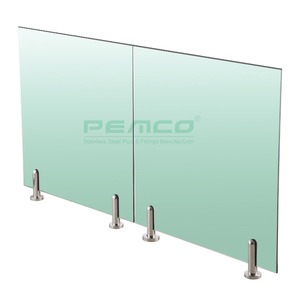

| Heavy-Duty Stainless Spigot | Duplex 2205 / SS316 Marine Grade | 12mm - 15mm Toughened Monolithic | 0.74 kN/m - 1.5 kN/m | AS1926.1, EN 1991-1-1 Eurocode 1 |
| Standoff Point Fixing | Solid Machined Stainless Steel 304/316 | 17.52mm PVB / SGP Toughened | 1.0 kN/m - 2.0 kN/m | EN 12600, ASTM E935 / E985 |
| Integrated LED Handrail Track | Anodized Aluminum 6063-T5 + Opal Lens | 10mm - 16.76mm Toughened Laminated | 0.74 kN/m - 1.5 kN/m | CE, RoHS, IP67 Electrical Safety |
Operating from our state-of-the-art Al Sajaa Industrial Facility spanning multiple specialized sheds, our company integrates architectural design, structural engineering calculations, profile extrusion finishing, precision CNC machining, and automated glass tempering under a single roof.
With over 12 years of structural glazing fabrication experience and over 1,000 completed international projects, we remove third-party markup and eliminate quality discrepancies. Every batch of aluminum base profiles undergoes rigorous Qualicoat powder coating or anodizing inspection, while all glass panels are heat-soak tested to eliminate spontaneous breakage risks caused by nickel sulfide (NiS) inclusions.
As global building codes tighten around energy performance, structural safety, and carbon neutrality, procurement managers and real estate developers must align their supply chains with next-generation architectural trends:
Traditional PVB interlayers deform under sustained high temperatures and lack post-fracture structural integrity. The industry standard has shifted decisively toward SentryGlas® (SGP) ionoplast interlayers, which are 5 times stiffer and up to 10 times stronger than standard PVB, allowing frameless designs without top handrails.
Building-Integrated Photovoltaics (BIPV) are transforming passive balcony railings into clean energy generators. Double-glazed semi-transparent solar glass balustrades collect solar irradiance while offering privacy shielding and maintaining certified structural safety.

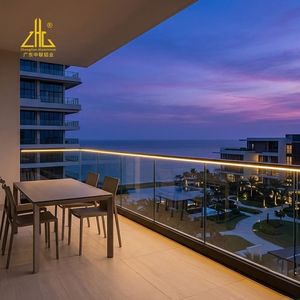

Architectural specifiers are increasingly opting for continuous aluminum U-channels with built-in waterproof IP67 LED lighting tracks. Edge-lit low-iron glass panels provide ambient pathway illumination, enhancing nighttime safety and architectural elegance.
International green building schemes (LEED v4.1, BREEAM, Estidama) now require Environmental Product Declarations (EPDs). Our base profiles utilize primary aluminum manufactured with low-carbon hydropower and up to 75% recycled scrap content.
Procurement teams require accurate 3D parametric BIM models (Revit / IFC formats) with complete LOD 400 detailing prior to order finalization, streamlining clash detection against structural post-tensioned slabs and curtain wall brackets.
On-site labor efficiency is paramount. Modern U-channel base shoes feature dynamic plastic wedge alignment systems, enabling installers to adjust glass alignment by ±2 degrees without messy chemical grouts or specialized tooling.
The global architectural glass sector is undergoing significant regulatory changes. Building codes across Europe, Australia, North America, and the Gulf Region (GCC) increasingly mandate higher wind load resistance calculations, especially for coastal developments and super-tall residential towers where wind pressure can exceed 3.5 kPa (kiloPascals).
Addressing crucial structural, compliance, and logistical inquiries raised by facade consultants, structural engineers, commercial developers, and procurement managers:
Every shipment includes an official Declaration of Performance (DoP) tied to CE Marking under EN 1090-1 (Factory Production Control for structural aluminum components) and EN 12600 (Pendulum Impact Resistance for architectural glass). Additionally, mill test certificates (MTC 3.1) for aluminum alloys 6063-T6/6005-T5 and stainless steel grades 304/316/Duplex 2205 are provided alongside physical lab test reports from accredited third-party testing bodies (SGS, TÜV, Intertek).
SGP (SentryGlas®) interlayers are essential for cantilevered frameless balustrades without a continuous cap rail, for high-wind external balconies, coastal applications exposed to elevated temperatures, and high-occupancy commercial venues. SGP maintains post-glass-breakage standing strength, remaining upright even if both glass plies are shattered. PVB is suitable for indoor residential applications or balustrades with continuous structural top handrails that provide secondary support.
Our structural aluminum base shoes receive high-specification surface treatments: either Qualicoat Class 2 architectural powder coating (with a minimum 60-80 micron thickness) or marine anodizing rated at 25 microns (AA25). These finishes undergo 1,000+ hours of ISO 9227 neutral salt spray testing without blistering or filiform corrosion, ensuring a 20+ year lifespan in aggressive coastal zones.
Standard stock profiles (anodized silver, dark bronze, warm white, or matte black U-channels) ship within 7 to 12 days. Custom extrusion die development and sample prototype approval require approximately 15 days. Full project orders combining custom aluminum profiles and heat-soaked toughened laminated glass panels typically ship within 21 to 30 days from final shop drawing approval.
Yes. Our LED-enabled aluminum U-channel tracks are designed with dedicated internal wiring raceways and click-in polycarbonate light diffusers. Electricians can easily feed IP67 flexible LED strips into the channel base or top slot cap handrail without disassembling the structural glass panels.
We engineer our base channels for use with heavy-duty M10 or M12 stainless steel (A4-70 / SS316) concrete expansion anchors or chemical anchor studs (such as Hilti HIT-HY 200). Bolt spacing (typically 200mm to 400mm centers) and edge distance calculations are specified based on slab concrete grade (C25/30 minimum) and project wind pressure.
